Solrif PV dummy modules
Solrif PV dummy modules are designed to complement in-roof photovoltaic systems in areas where active PV modules cannot be installed – for example at roof edges, in shaded zones or to achieve a consistent visual appearance. They ensure a uniform roof design and complete coverage within the Solrif system.
In our B2B shop, you will find precisely matching dummy modules from manufacturers such as SoliTek and Sonnenstromfabrik, available for all common Solrif module sizes and frame variants.
SoliTek Solrif N Dummy | Dummy module | Black | B.96 Module 2026
The SoliTek Solrif N dummy blind module provides a visually perfect and technically flawless addition to Solrif® in-roof photovoltaic systems.More informationProduct descriptionThe SoliTek Solrif N dummy module (2026) is an inactive dummy module designed to complement Solrif® in-roof systems. It has been specially developed for the Solrif N system platform and enables a continuous, uniform roof surface – even in areas without active PV.The dummy module provides a neat and professional solution, particularly for complex roof geometries such as hipped roofs, dormers, skylights or chimneys. The modules are supplied in standard sizes to match the B.96 modules and can be cut to size on site.The optimal combination is achieved with the matching PV module: SoliTek Solrif N B.96 Black 455 W glass-glass moduleProduct featuresDummy module (without power generation) for Solrif® in-roof systemsSpecially developed for Solrif N system framesVisually matched to SoliTek B.96 PV modulesPerfect for complete roof integrationIdeal for roof connections, dormers, chimneys and special areasCan be cut to size on siteEasy to work with and installCost-effective addition to PV modulesTechnical dataDimensions: approx. 1806 × 1160 × 17 mmWeight: approx. 20.5 kgMaterial: 4 mm aluminium composite panel (EN AW-5005A, H22)Colour: Black (RAL 9004)Fire rating: B-s1, d0System compatibility: Solrif N (B.96 series)The dummy module consists of an aluminium composite panel within the Solrif system frame and is optimised for full roof integration. [oai_citation:0‡Solitek_Solrif_dummy_N_G12R_EN.pdf](sediment://file_00000000641872469ad47a06bc905f99)Application & InstallationCan be cut to size on siteIdeal for roof edges, valleys, penetrations and special areasCutting on the reverse side recommended (to protect the surface)Ensure weatherproofing through suitable substructure and flashingElectrical connection of metal parts recommended (e.g. bolting)Advantages at a glanceUniform roof appearance with no visible differencesFlexible solution for complex roof shapesQuick and easy installationThe perfect complement to the Solrif in-roof systemOptimised for roofers and specialist PV installersFrequently Asked Questions (FAQ)What is a Solrif dummy module?A dummy module is an inactive component that looks like a PV module and is used for complete roof integration.When is a dummy module used?Whenever roof areas need to be covered but no active PV is being installed.Can the module be cut to size?Yes, the dummy module is specifically designed to be customised on site.

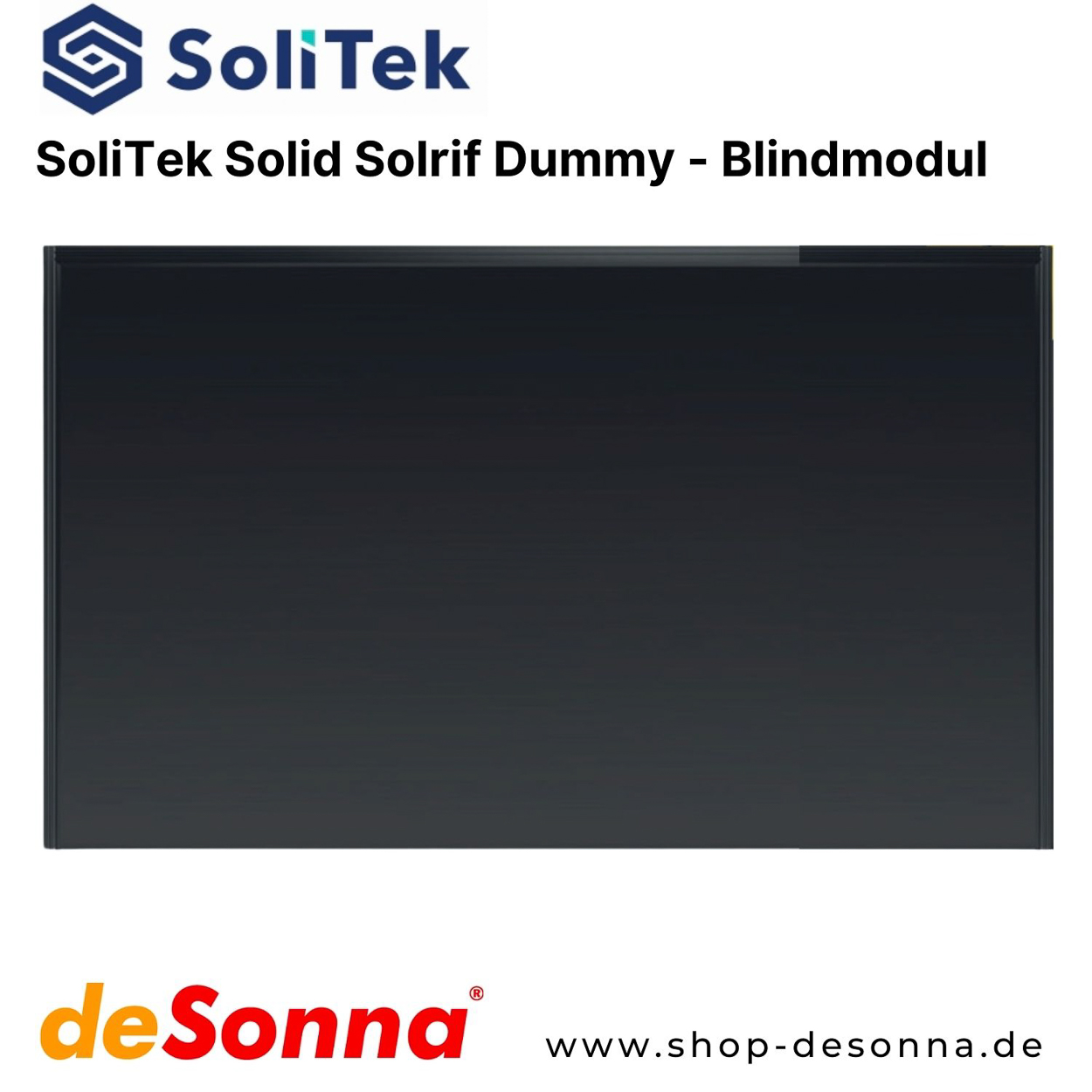

SoliTek | SOLID Solrif N Dummy | B.108 | Black - Dummy module
SOLID Solrif N Dummy – Dummy module – Robust dummy module for filling gaps in Solrif module arrays. Suitable forMore information on the Solrif® dummy moduleSoliTek Solrif Solrif N Dummy – Dummy module – Robust dummy module for filling gaps in Solrif module arrays.SoliTek Solrif Solrif N Dummy – Dummy module – 1767 x 1160 x 17 mmThe SoliTek Solid Solrif dummy modules are the ideal complement for a visually seamless and technically clean roof design with the Solrif® in-roof system. This dummy module, measuring 1767 x 1160 x 17 mm, is specially designed to match the SoliTek SOLID Solrif Full Black N B.108 435W 2+2 solar module and is perfect for all roof areas without active power generation – for example, at roof edges, dormers, chimneys or roof valleys.SoliTek Solid Solrif Dummy – Dummy ModuleSuitable for the Solitek SOLID Solrif Full black N B.108 435W 2+2 solar moduleVisually identical to the active PV modulesIdeal for use on hipped roofs, roof edges, dormers and special connectionsEasy to cut to size on site – high flexibility during installationEasy to work with, durable and weather-resistantColour-matched (RAL 9004 – deep black)Technical data – SoliTek Solid Solrif Dummy – 1767 x 1160 x 17 mmThe SoliTek dummy modules consist of a 4 mm thick aluminium composite panel, set in a Solrif® frame. They can be flexibly adapted to the structural conditions.Fire rating in accordance with EN 13501B-s1, d0Dimensions (L x W x H)1767 x 1160 x 17 mmWeightapprox. 20 kgPanel information4 mm aluminium composite panel (EN AW-5005A, H22)Panel colourRAL 9004A precisely cut-to-size dummy module covers the corresponding roof area and is then – depending on the system – covered with traditional roofing materials (e.g. tiles) or the Solrif® system.The dummy modules are supplied in standard sizes and are cut to size and installed on site – precisely adapted to the structural conditions.CuttingTo avoid scratches or damage to the front, cut the dummy module on the back (unpainted side).CompletionWater drainage beneath the louvre module must be ensured by using a membrane. Further measures to improve rainproofing may be necessary.ConnectionTo ensure that all metal parts are electrically connected, it is recommended that the frame be connected to the sheet metal – e.g. by screwing. Other solutions are permissible provided they are permanent and secure.Please observe the installation and cutting recommendations of Ernst Schweizer AG – (Factsheet: Dummy modules for Solrif BIPV roof system).
SoliTek Solrif D Dummy | B.96 | Dummy module for 2026 modules
The SoliTek SOLID Solrif D Dummy B.96 in black is a dummy module for the Solrif® in-roof system (Type D) and is designed to provide a visually seamless and technically clean finish for roof areas without active power generation. It is specifically designed to match the SoliTek SOLID Solrif D modules of the 2026 generation and ensures a high-quality, seamless roof appearance even with complex connection details.More informationFunction & System PrincipleDummy modules are inactive modules that are visually matched to active Solrif PV modules. They consist of a 4 mm thick aluminium composite panel framed with SOLID Solrif D profiles. By cutting them to size on site, numerous interference points and special connections can be executed in a standardised and system-compliant manner.The dummy modules are delivered to the construction site in standard sizes matching the active modules and are then cut to size and installed on site. The filled area is subsequently sealed to be rainproof using cover plates or system components.Typical applicationsHipped roofsRoof edges & eavesRoof valleysSkylightsChimneys & steam ventsDormers & special connectionsProduct benefitsSuitable for SoliTek SOLID Solrif D modules (B.96, 2026)Dummy module without power generationVisually identical to the active full-black modulesIdeal for interference points & roof connectionsEasy to cut to size on site (cutting module)Robust, durable & weather-resistantOften a more cost-effective solution than custom modulesTechnical dataProduct typeDummy module / blanking moduleSystemSOLID Solrif® DModule platformB.96 (Generation 2026)Dimensions (L × W × H)1806 × 1160 × 17 mmWeightapprox. 20.5 kgPanel material4 mm aluminium composite panel (EN AW-5005A, H22)ColourBlack (RAL 9004)Fire classB-s1, d0 in accordance with EN 13501Rated power– (no power generation)Recommendations for installation & assemblyCuttingTo avoid scratches or damage to the fully black-painted front, the blind module should only be cut to size on the rear (unpainted side) using a suitable cutting tool (e.g. a saw).Finishing & water drainageWater drainage beneath the blanking module must be ensured by suitable covers (e.g. sheeting or metal plates). If necessary, additional measures to improve rainproofing may be required.Electrical connectionTo ensure that all metal parts are electrically conductive, it is recommended to connect the frame and sheet metal to one another. Drilling through the frame and sheet metal followed by screw fastening has proven effective. Other solutions are permissible provided they are permanently and securely implemented.The installation and cutting recommendations of Ernst Schweizer AG must be observed (Factsheet: Dummy modules for SOLID Solrif® BIPV roof system).The SoliTek SOLID Solrif D Dummy B.96 is the ideal complement to Solrif in-roof systems of the 2026 module generation and enables technically correct, durable and visually perfect roof integration – even with complex roof details.
SoliTek | SOLID Solrif N Dummy | B.60 | Black - Dummy module
The SoliTek SOLID Solrif N Dummy B.60 in black is a high-quality dummy module for the Solrif® in-roof system, designed to provide a visually and technically seamless finish for gaps within Solrif module arrays. It is specially designed to match the SoliTek SOLID Solrif Full Black N B.60 solar module and ensures a seamless roof appearance even in areas without active power generation.More informationApplication & FunctionThe Solrif dummy module is used wherever PV modules cannot or should not be installed, such as at roof edges, hipped roofs, dormers, chimneys, roof valleys or special connections. Visually, it is identical to the active Solrif modules, ensuring a harmonious overall appearance of the roof surface.Product benefitsSuitable for SoliTek SOLID Solrif Full Black N B.60Visually identical to the active PV modulesDummy module without power generation – ideal for edge and special areasEasy to cut to size on site for maximum flexibilityRobust, durable & weather-resistantColour-matched to RAL 9004 (deep black)Fully compatible with the Solrif® in-roof systemTechnical dataProduct typeBlind module / Dummy moduleSystemSolrif® NDimensions (L × W × H)1820 × 1160 × 17 mmWeightapprox. 20 kgPanel material4 mm aluminium composite panel (EN AW-5005A, H22)ColourBlack (RAL 9004)Fire classB-s1, d0 (EN 13501)Frame systemSolrif® NRated power– (Blind module without power generation)Installation & processingDummy modules are supplied in standard sizes and cut to size on siteAlways cut on the reverse side (unpainted side) to avoid damaging the surfaceWater drainage beneath the dummy module must be ensured using foil in accordance with the systemThe frame and sheet metal should be connected electrically (e.g. by screwing)The installation and cutting recommendations of Ernst Schweizer AG applyTypical applicationsRoof edges & roof terminationsHipped roofsDormers & chimneysRoof valleys & special connectionsArchitecturally complex roof surfacesWith the SoliTek SOLID Solrif N Dummy B.60, Solrif roof systems can be installed not only technically correctly but also aesthetically perfectly – even on complex roof geometries.
Solrif | Blind module for snow guard
Blind module in any colour for our Solrif snow retention system. The width of the blind module depends on the width of the modules used in the in-roof system. The height of the blind module is mm. The blind modules form a row along which double-tube brackets are mounted to catch snow.
Solrif | Shade module for panel sizes < 1m²
Blind modules are available in any colour and can be adapted to any module shape. The price varies depending on the size of the blind module. Blind modules are used to cover gaps in the roof, such as chimneys, dormers or skylights. A blind module does not generate electricity.
Solrif | Shutter module for the M48 solar power plant
Black dummy module in the form of a Sonnenstromfabrik M48 photovoltaic module. Dummy modules are used to cover gaps in the roof, such as chimneys, dormers or skylights. A dummy module does not generate electricity.
Solrif | Blank panel for panel sizes between 1 and 1.5 m²
Blind modules are available in any colour and can be adapted to any module shape. The price varies depending on the size of the blind module. Blind modules are used to cover gaps in the roof, such as chimneys, dormers or skylights. A blind module does not generate electricity.
Solrif | Blind module for the M54 solar power plant
Black dummy module in the form of a Sonnenstromfabrik M54 photovoltaic module. Dummy modules are used to cover gaps in the roof, such as chimneys, dormers or skylights. A dummy module does not generate electricity.
Solrif | Blind module for the M60 solar power plant
Black dummy module in the form of a Sonnenstromfabrik M60 photovoltaic module. Dummy modules are used to cover gaps in the roof, such as chimneys, dormers or skylights. A dummy module does not generate electricity.
Solrif | Shutter module for the M108 solar power plant
Blind modules that can be cut to size to fit any module shape, in the right colour and size for seamless transitions around chimneys, dormers and skylights. Blind modules do not generate electricity.
Solrif | Blind module for the M96 solar power plant
Blind modules that can be cut to size to fit any module shape, in the right colour and size for seamless transitions around chimneys, dormers and skylights. Blind modules do not generate electricity.
Solrif | Shading module for panel sizes > 1.5 m²
Blind modules are available in any colour and can be adapted to any module shape. The price varies depending on the size of the blind module. Blind modules are used to cover gaps in the roof, such as chimneys, dormers or skylights. A blind module does not generate electricity.
Solrif | Shading module for panel sizes > 1.8 m²
Black blanking module for modules with an area greater than 1.8 m². Blanking modules are used to cover gaps in the roof, such as chimneys, dormers or skylights. A blanking module does not generate electricity.
